Hosted Gateway Installation - Microsoft Exchange Outbound

  • Updated

About

This document will guide you through the configuration of Virtru Gateway rules backed by Microsoft Exchange Server.

Assumptions:

  • CNAME Records Created so Virtru can sign DKIM and the virtrugateway.com domain can send on behalf of your domain.
  • TXT Records Created so Virtru can verify domain ownership prior to implementation.
  • Mail Flow The Virtru Hosted Gateway is preconfigured for maximum security and interoperability between systems.
  • Mail Encryption Trigger:
    • Sender is Inside the Organization
    • Recipient is Outside the Organization
  • Mail Flow: Exchange > Gateway > Final Delivery
  • Authorization
    • X-Virtru-Auth:00000000000000000000

Note

The Authorization Header is specific to your organization and will be provided to you by Virtru.



Jump to:

Diagram of Standard Mailflow

Create Send Connector

Create Transport Rule

Create Virtru Encryption Rule



Diagram of Standard Mailflow

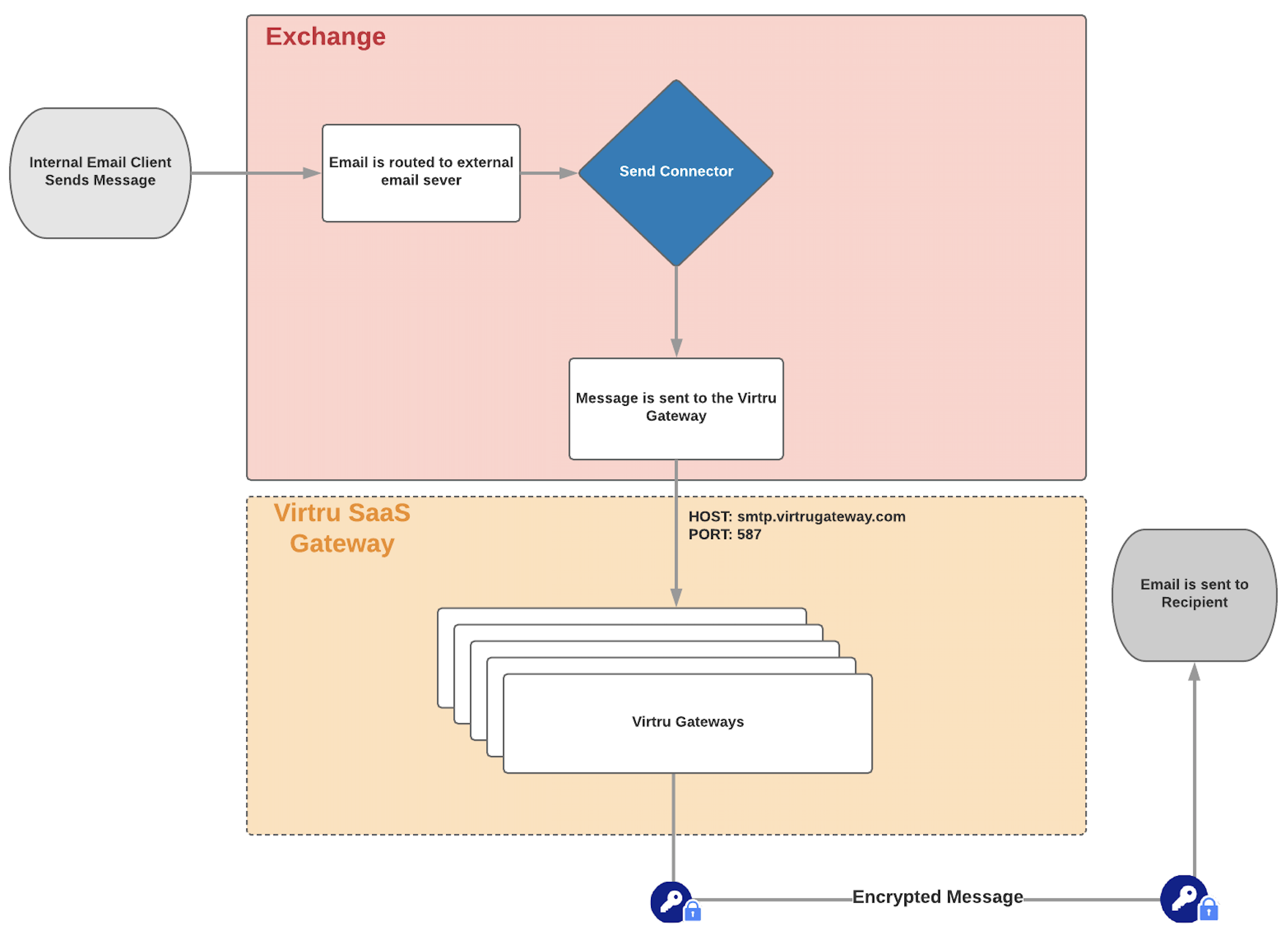

Diagram of standard mailflow



Create Send Connector

  1. Login into the Exchange Control Panel: https://exchange.example.com/ecp
  2. Navigate to the Mail Flow Section
  3. Navigate to the Send Connectors Tab

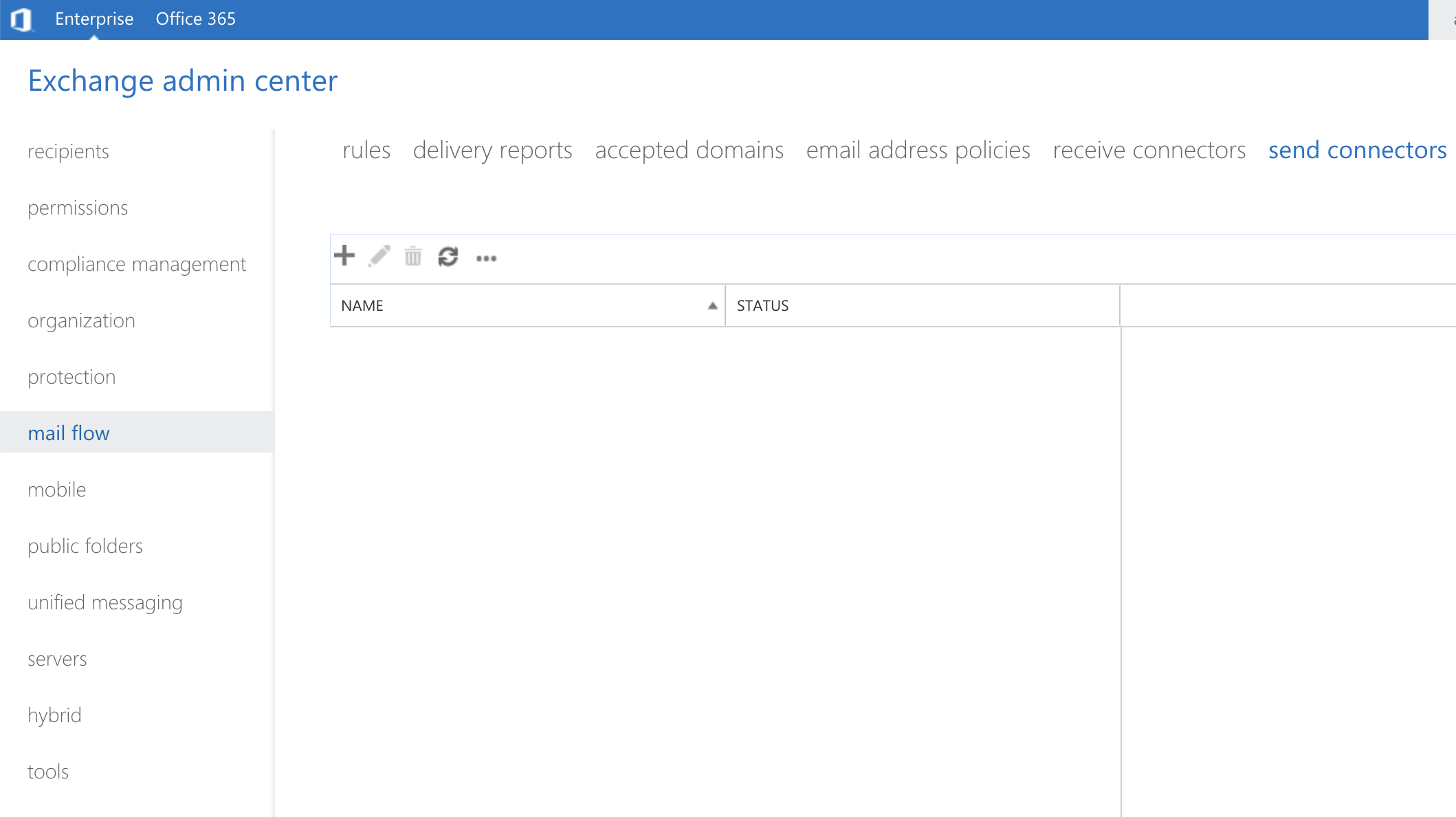

Exchange admin center mail flow section

4. Create a new Send Connector

  • Name: Virtru Hosted Gateway Outbound
  • To: Internet

5. Specify how to send mail with this connector

  • Route email through these smart hosts
    • smtp.virtrugateway.com

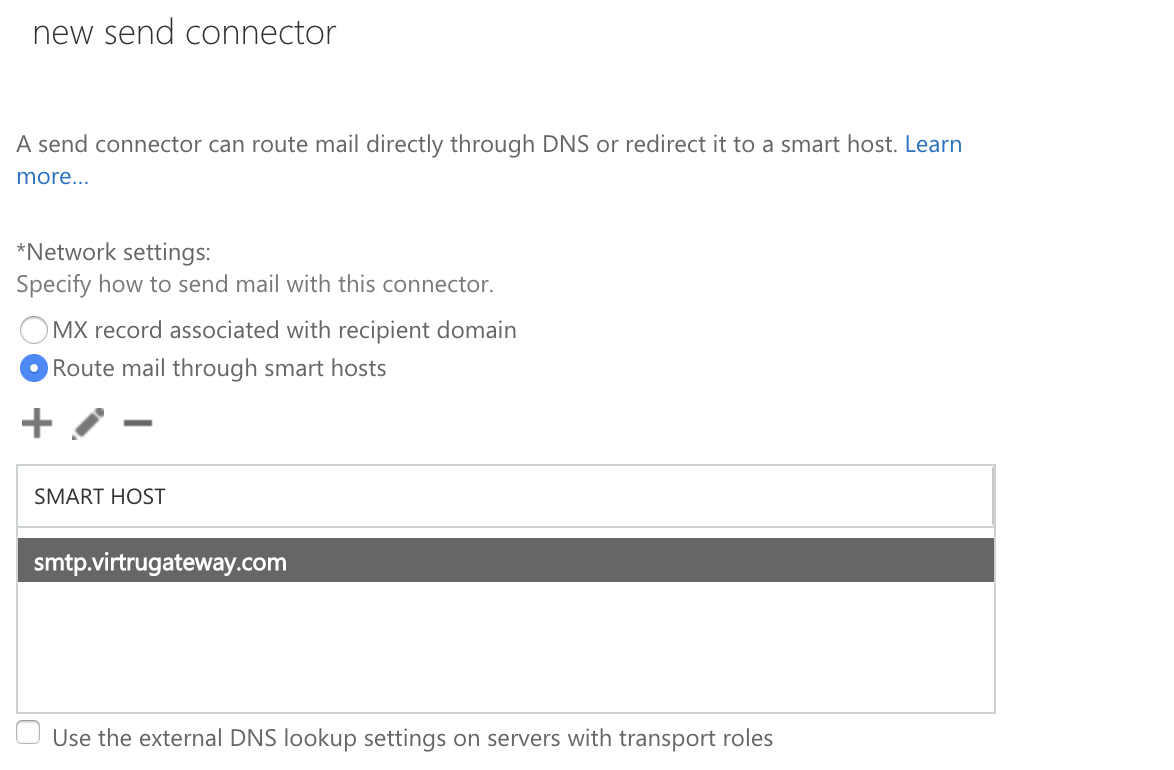

send connector setup



6. Configure smart host authentication

  • None

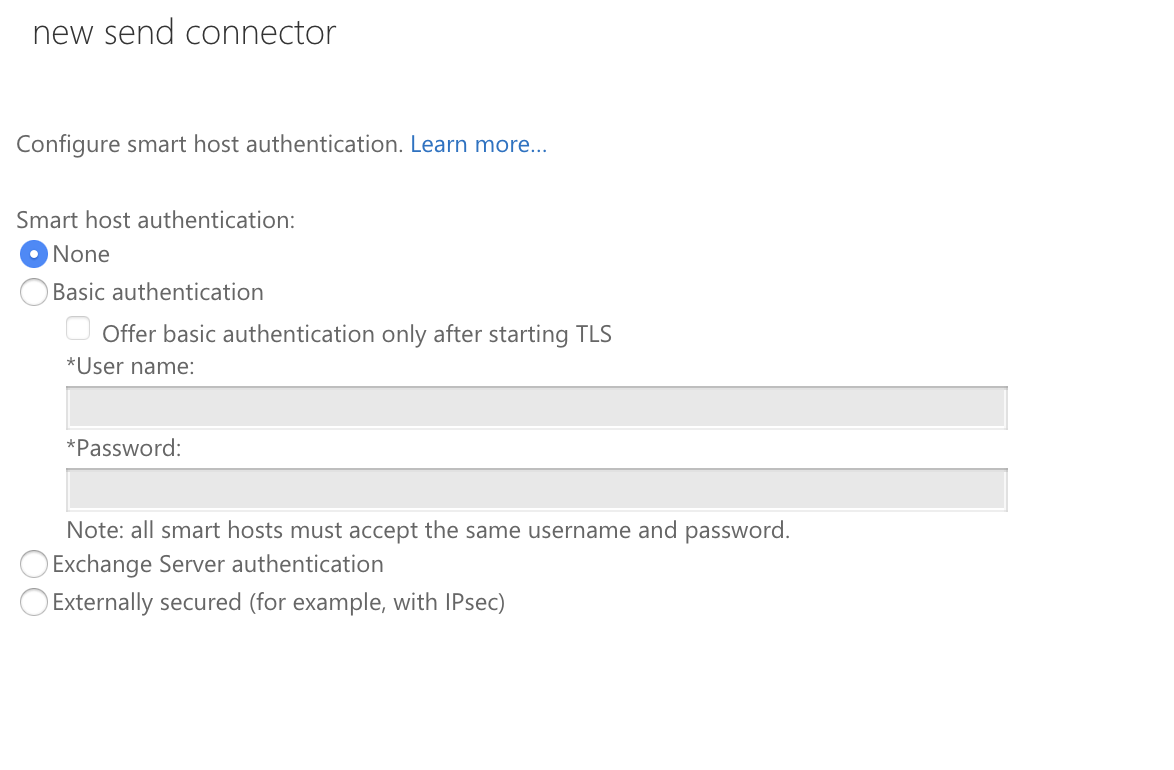

smart host authentication setup

7. Address Space

  • Type: SMTP
  • Domain: *
  • Cost: 1

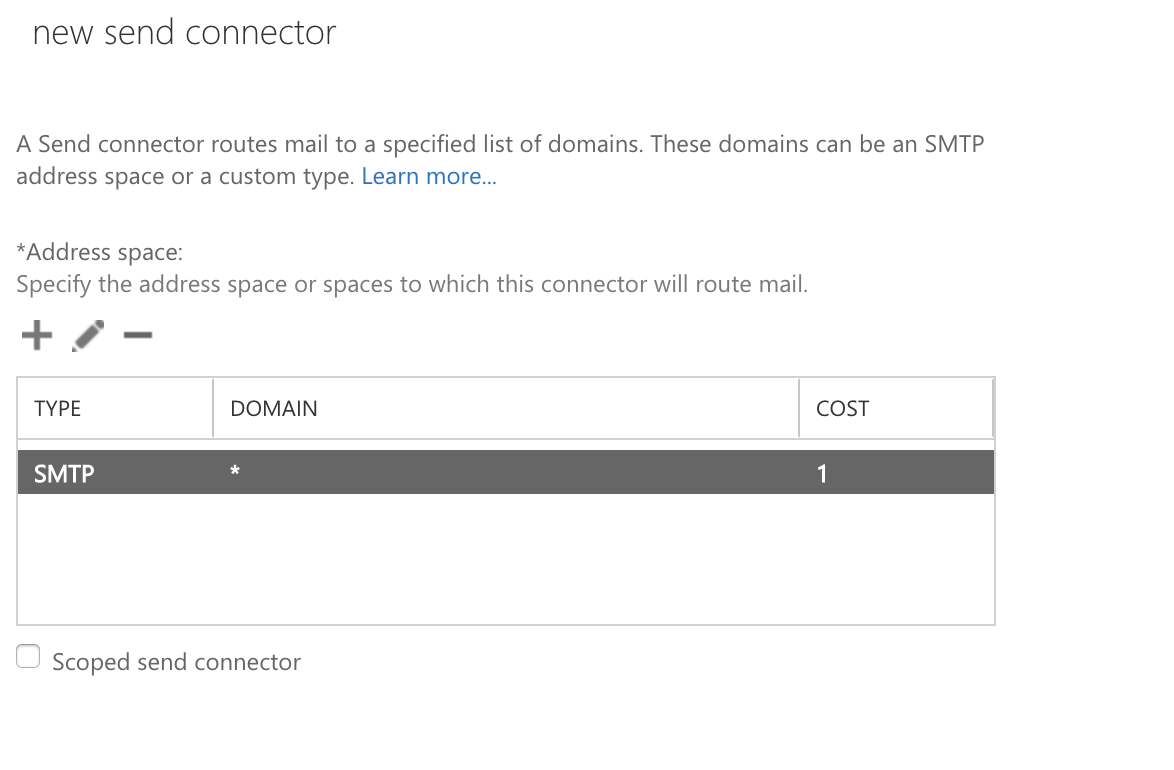

new send connector

8. Source Server

  • Select the Exchange Server(s)

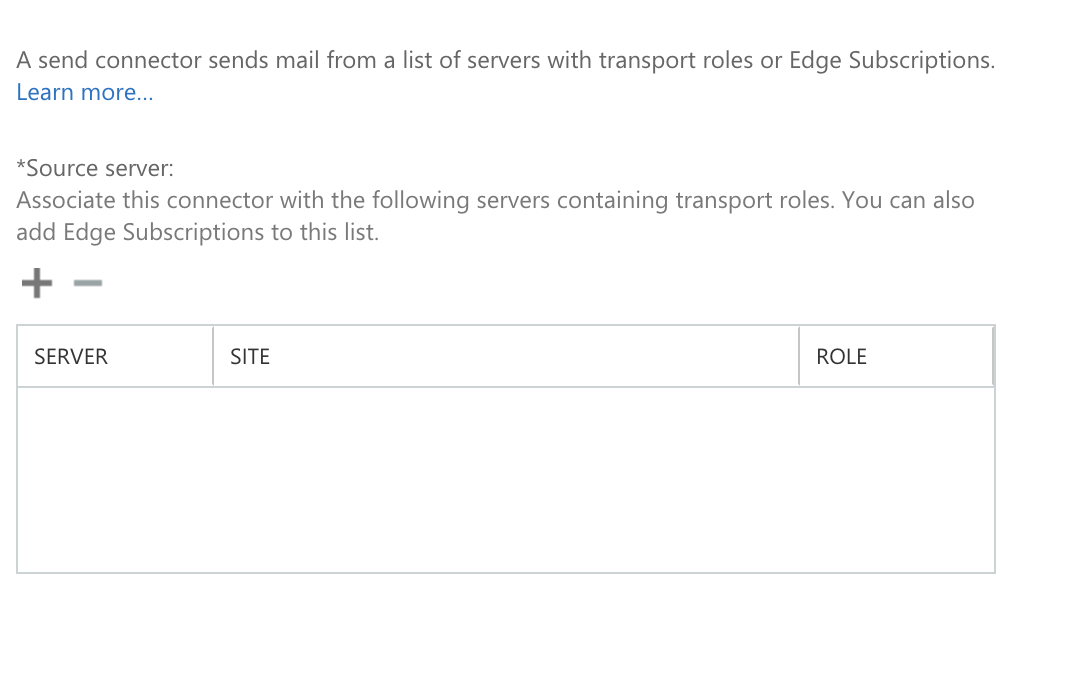

source server setup

9. Validate Connector

  • Connector may need to be validated



Transport Rule

1. Navigate to the Mail Flow Section

2. Navigate to the Rules Tab

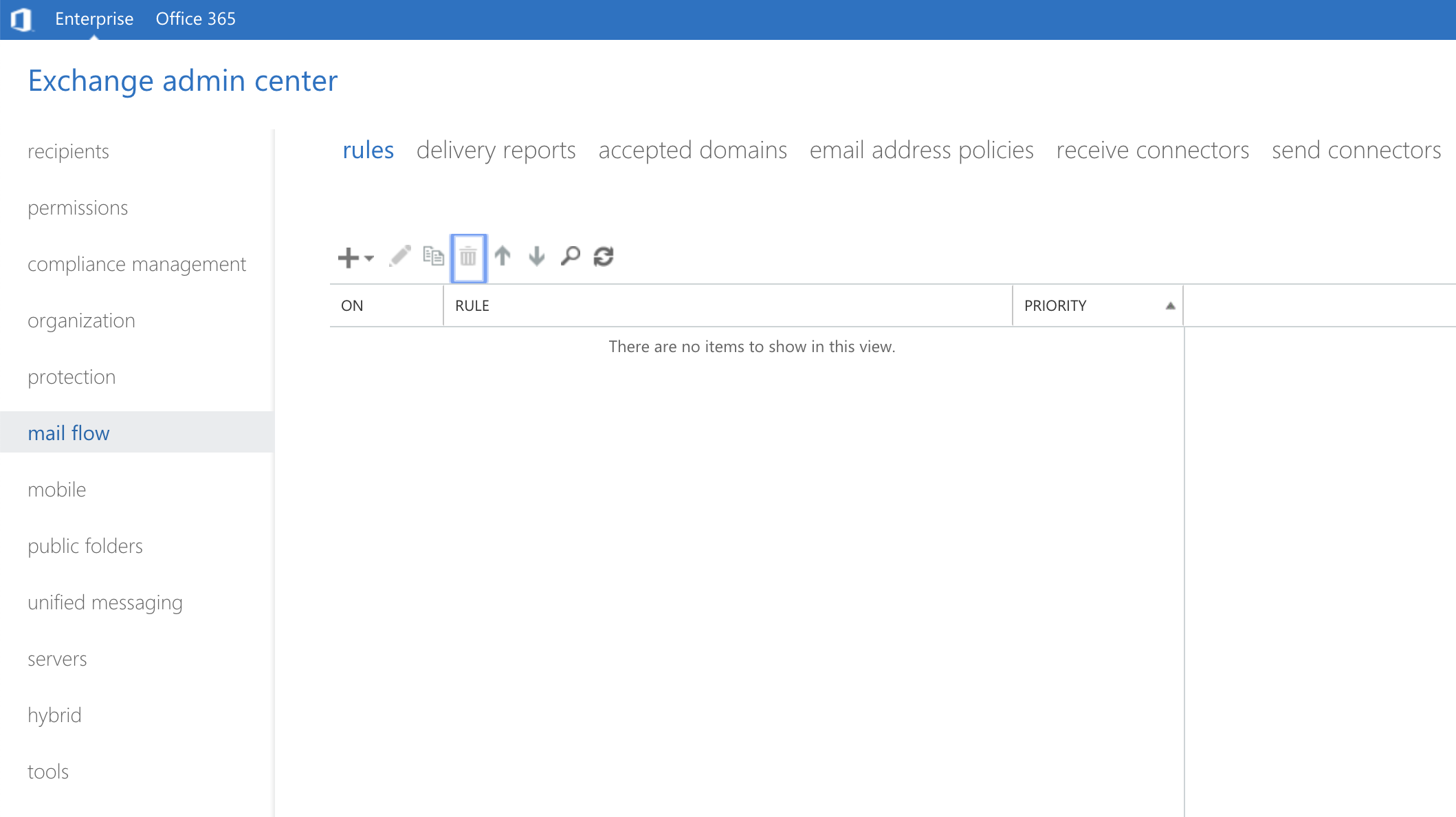

exchange admin center mail flow setup rules section



Add New Transport Rule

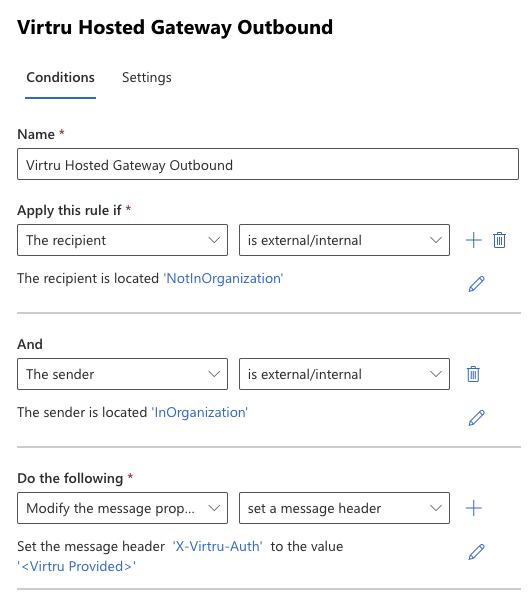

1. Enter Rule Details

  • Name
    • Ex: Virtru Hosted Gateway Outbound
  • Conditions
    • The Sender is located: Inside the organization
    • The Recipient is located: Outside the organization
  • Actions
    • Add Header
      • Name: X-Virtru-Auth
      • Value: 00000000000000000000

Diagram



Create Virtru Encryption Rule

Once the message is routed to the Virtru Hosted Gateway, a Virtru Security Rule must be created and enabled to evaluate the message and encrypt.  Each Virtru Security Rule is evaluated against each message sent to the Virtru Hosted Gateway.  The Virtru Security Rules are shared between the Virtru Hosted Gateway and the Virtru Clients.

To create a rule follow this LINK
