Prerequisites to Virtru Gateway Setup

  • Updated

About

The Virtru Hosted Gateway is a hosted secure email gateway that provides Virtru’s data protection and DLP functionality as an MTA endpoint.

The email gateway service encrypts data before leaving or entering your domain, even if the sender does not have Virtru plugins installed or enabled in their email client.

The Hosted Gateway requires no install/config/maintenance and is a component of any compliance initiative requiring data protection.

Jump to:

DNS

Mail Flow

Header

Delivery

DNS

Some DNS entries are required prior to implementation. Please create these DNS records prior to Gateway setup. These records will need to be created for each domain that will be sending mail through the Hosted Gateway.

Your Virtru representative will send you a 40 character alpha-numeric string. Please substitute this string where it says <virtru_supplied_token> below.

Please substitute your domain where it says <yourdomain.com> below.

  • CNAME Records
    Created so Virtru can sign DKIM and the virtrugateway.com domain can send on behalf of your domain, please create each CNAME entry below:
    • Name: virtrugw._domainkey.<yourdomain.com>
    • Type: CNAME
    • Value: virtrugw._domainkey.virtrugateway.com
    • Name: virtrugw2._domainkey.<yourdomain.com>
    • Type: CNAME
    • Value: virtrugw2._domainkey.virtrugateway.com
  • TXT Record
    • Created so Virtru can verify domain ownership prior to implementation
    • Name: @
    • Type: TXT
    • Value: virtru-site-verify=<virtru_supplied_token>

Note - GoDaddy, Namecheap, Squarespace

If using GoDaddy as your DNS provider please drop the domain name from the CNAME record name. GoDaddy auto adds domain names so failing to drop the .<yourdomain> noted above will cause the domain to be listed twice in the record.

Go Daddy Screen shot examples:

CNAME

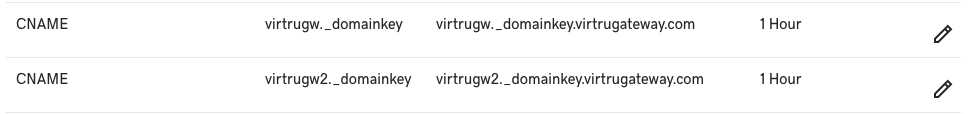

GoDaddy CNAME examples

TXT

GoDaddy TXT example

Note - Route53

If using Route53 as your DNS provider please leave the Name field empty for the TXT record.

Example:

<yourdomain.com> = virtruprivacy.com

<virtru_supplied_token> = PRwJ2U3zRu4MOKq30V4z2X0jjcOgkuaPaZL7vLt8

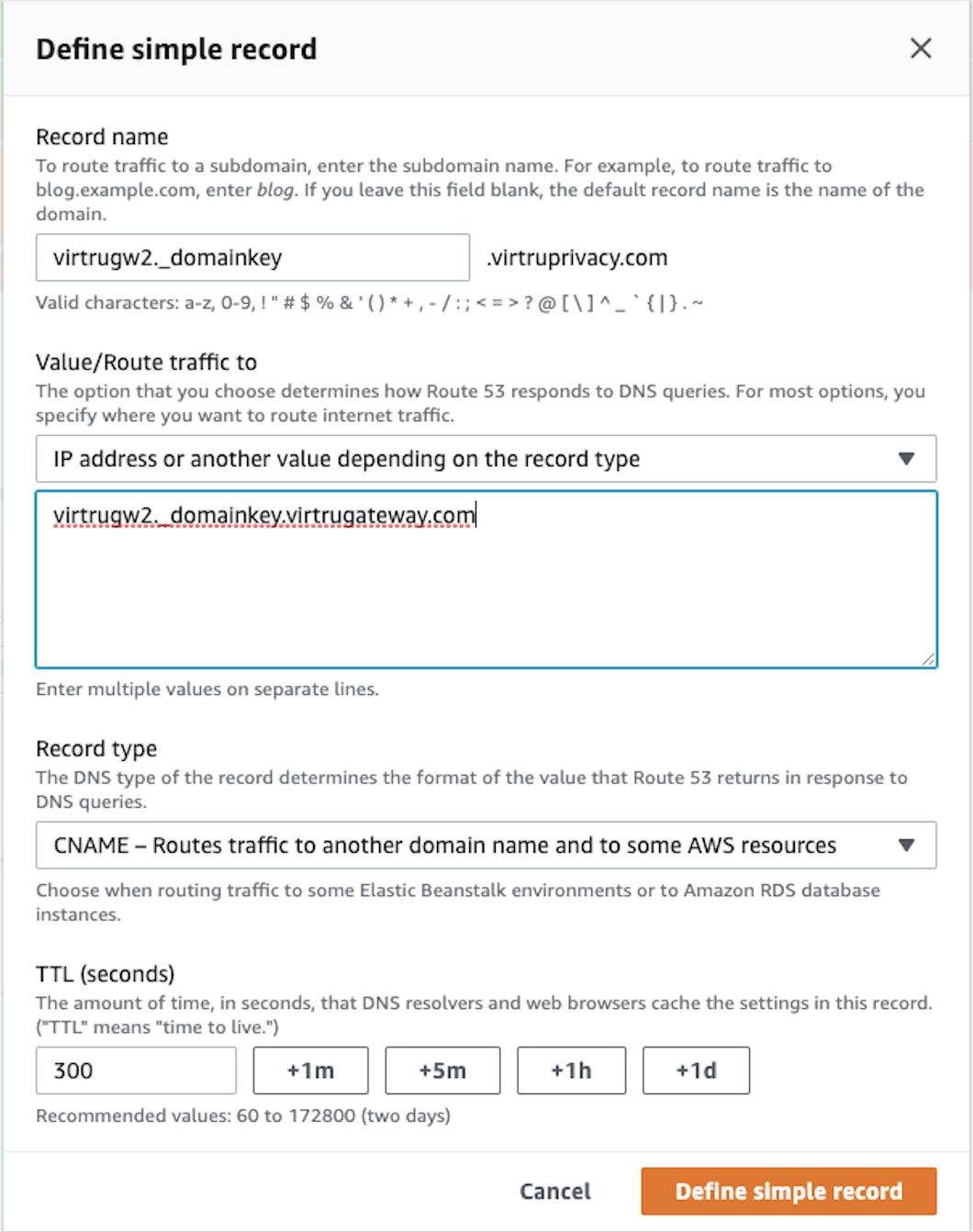

CNAME

Screen_Shot_2020-08-04_at_2.30.16_PM.png Screen_Shot_2020-08-04_at_2.30.03_PM.png

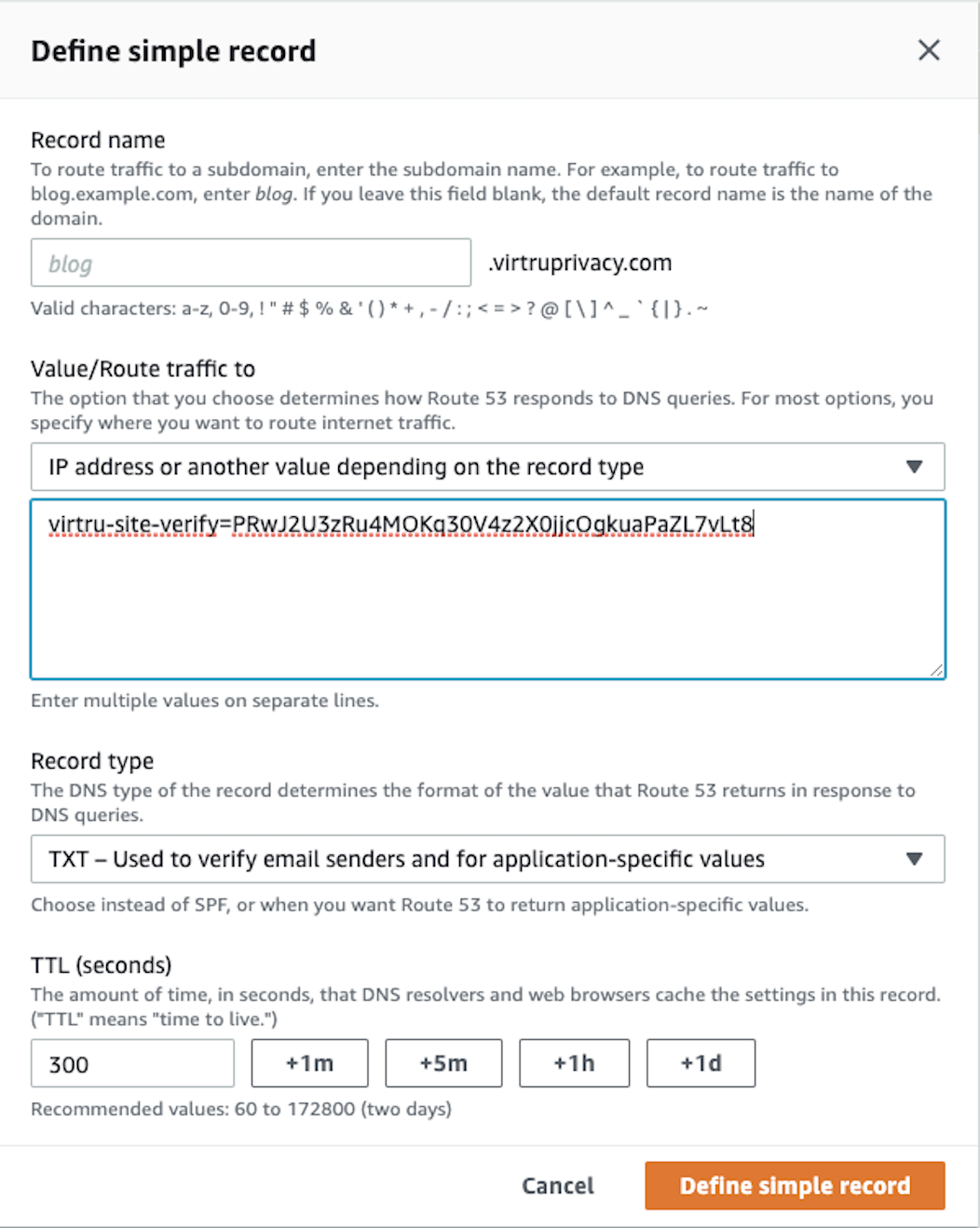

TXT


Note - Google Domains

If using Google Domains as your DNS provider please drop the domain name from the CNAME record name. Google auto adds domain names so failing to drop the .<yourdomain> noted above will cause the domain to be listed twice in the record. In addition, Google will automatically add your domain name to the end of the value of the record. To prevent that, use virtrugw._domainkey.virtrugateway.com. and virtrugw2._domainkey.virtrugateway.com. as the values.

Google Screen shot examples:

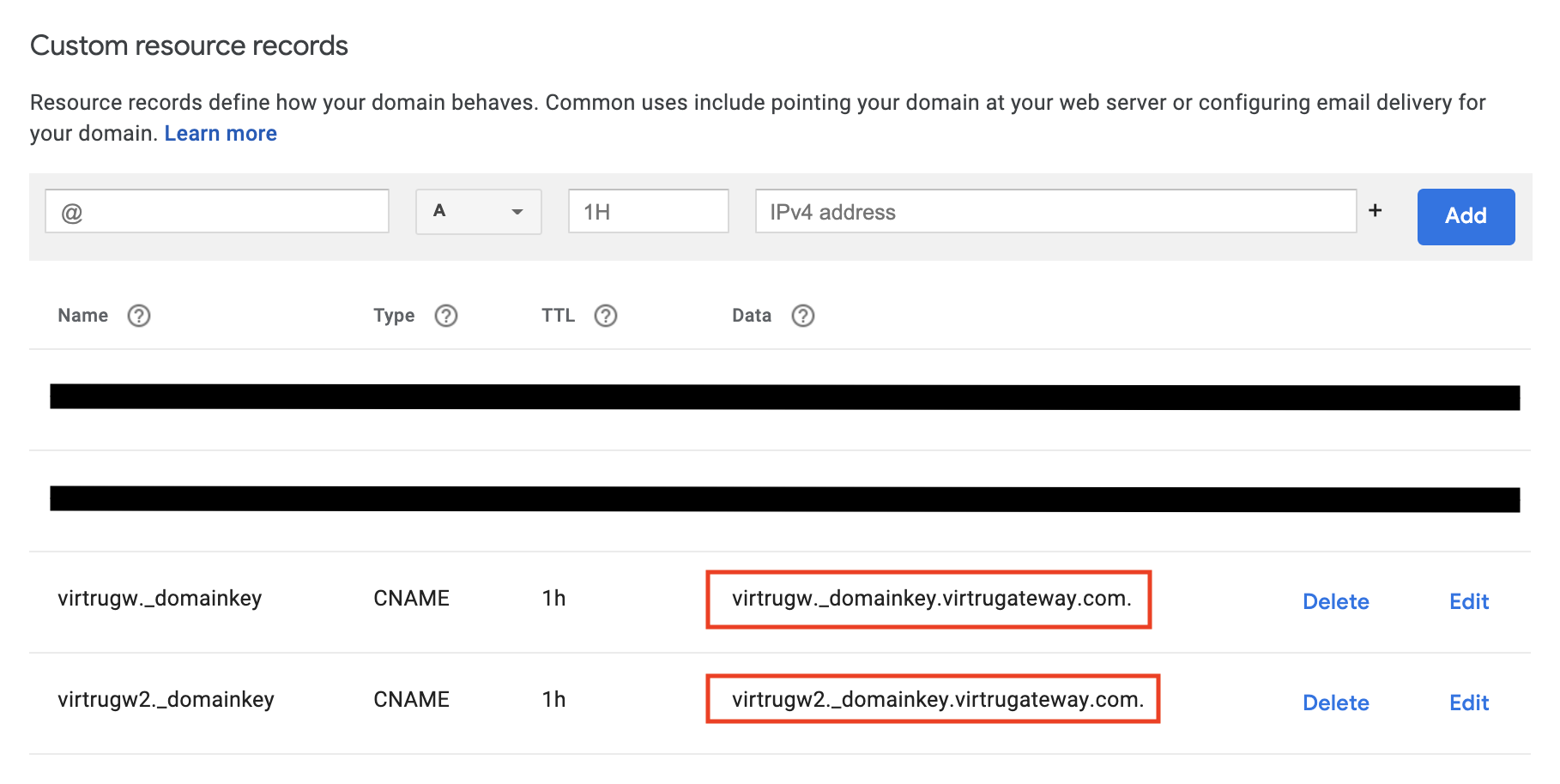

CNAME

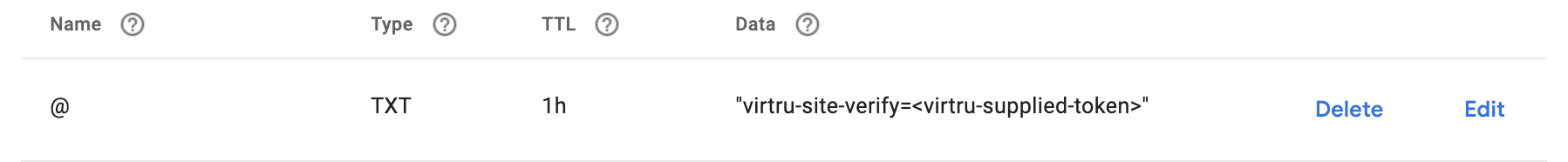

TXT


Mail Flow

The Virtru Hosted Gateway is preconfigured for maximum security and interoperability between systems.

  • Host
    • smtp.virtrugateway.com
  • Port
    • 587
    • 25
  • TLS
    • Mandatory



Header

Authentication

The Virtru Hosted Gateway authenticates inbound traffic via header authentication.  The application sending to the Virtru Hosted Gateway must have the ability to add an X-Header.

Example Header

X-Virtru-Auth:00000000000000000000

Virtru will provide the Authentication code.

Decryption

The Virtru Hosted Gateway uses an X-Header to dictate a decryption request.  For every inbound decrypt request, this header must exist.

X-Virtru-Decrypt:1



Delivery

The Virtru Hosted Gateway will always perform final delivery using the recipient's MX record.

The Virtru Gateway will deliver using the following IP addresses.

199.60.232.32
199.60.232.33
199.60.232.34
