About

This document will guide you through the configuration of Virtru Gateway rules backed by Office 365 infrastructure.

Assumptions:

• CNAME Records Created so Virtru can sign DKIM and the virtrugateway.com domain can send on behalf of your domain.
• TXT Records Created so Virtru can verify domain ownership prior to implementation.
• Mail Flow The Virtru Hosted Gateway is preconfigured for maximum security and interoperability between systems.

(Example)

• Mail Decryption Trigger:
  • X-Virtru-Inbound-Scanning NOT in Header
  • Inbound Messages
• Mail Flow: Gmail > Gateway > MX > Gmail > Final Delivery
• Authorization
  • X-Virtru-Auth: 00000000000000000000

Jump to:

Diagram of Standard Mailflow
Connector Creation
Content Compliance Rule Creation
Create Virtru Encryption Rule

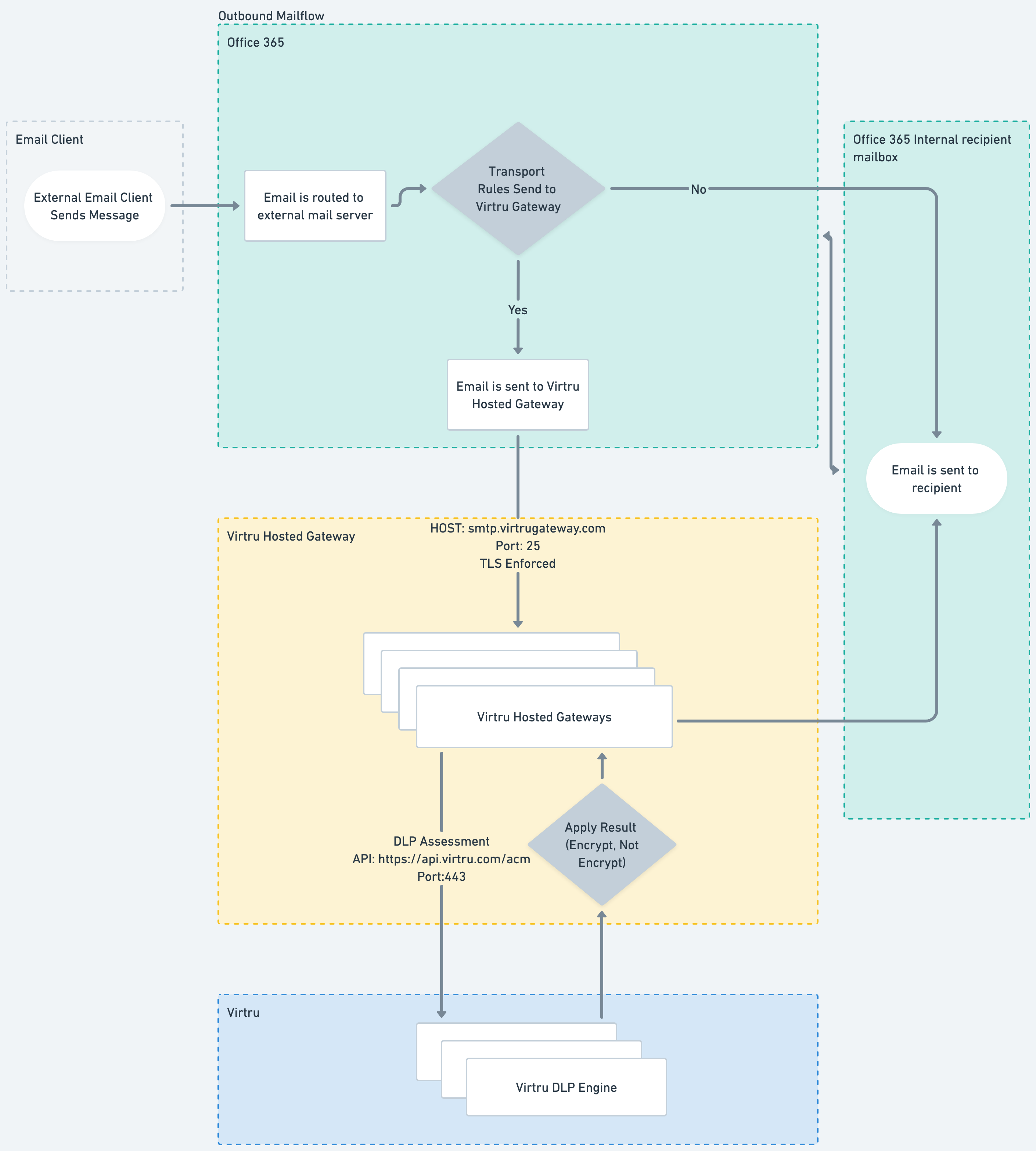

Diagram of Standard Mailflow

Create Connector

• Login into the Admin Console
  • https://portal.office.com

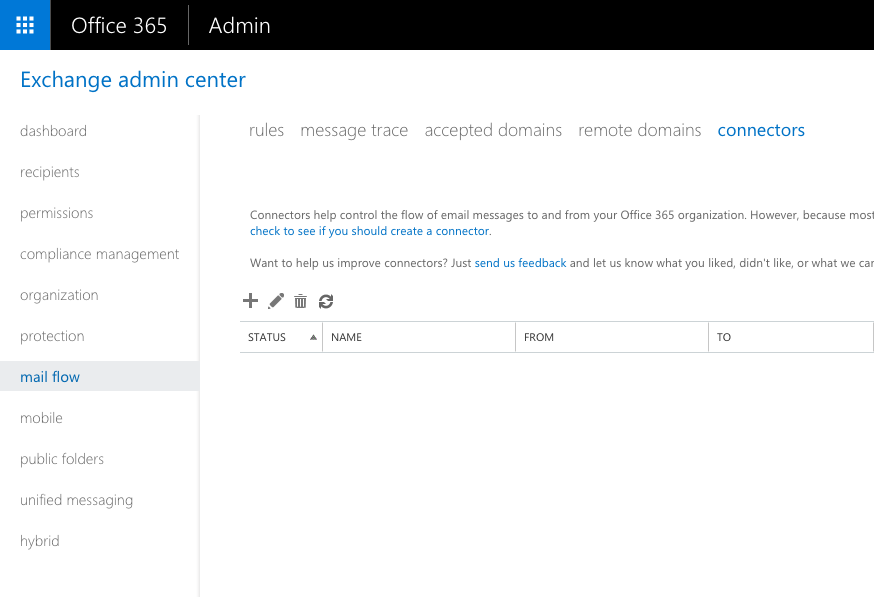

• Navigate to the Exchange Admin Portal

• Navigate to the Mail Flow Section
• Navigate to the Connectors Tab

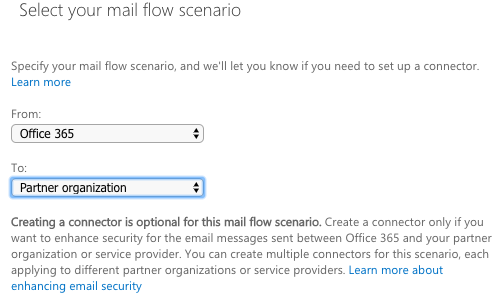

• Create a new Connector
  • From: Office 365
  • To: Partner Organization

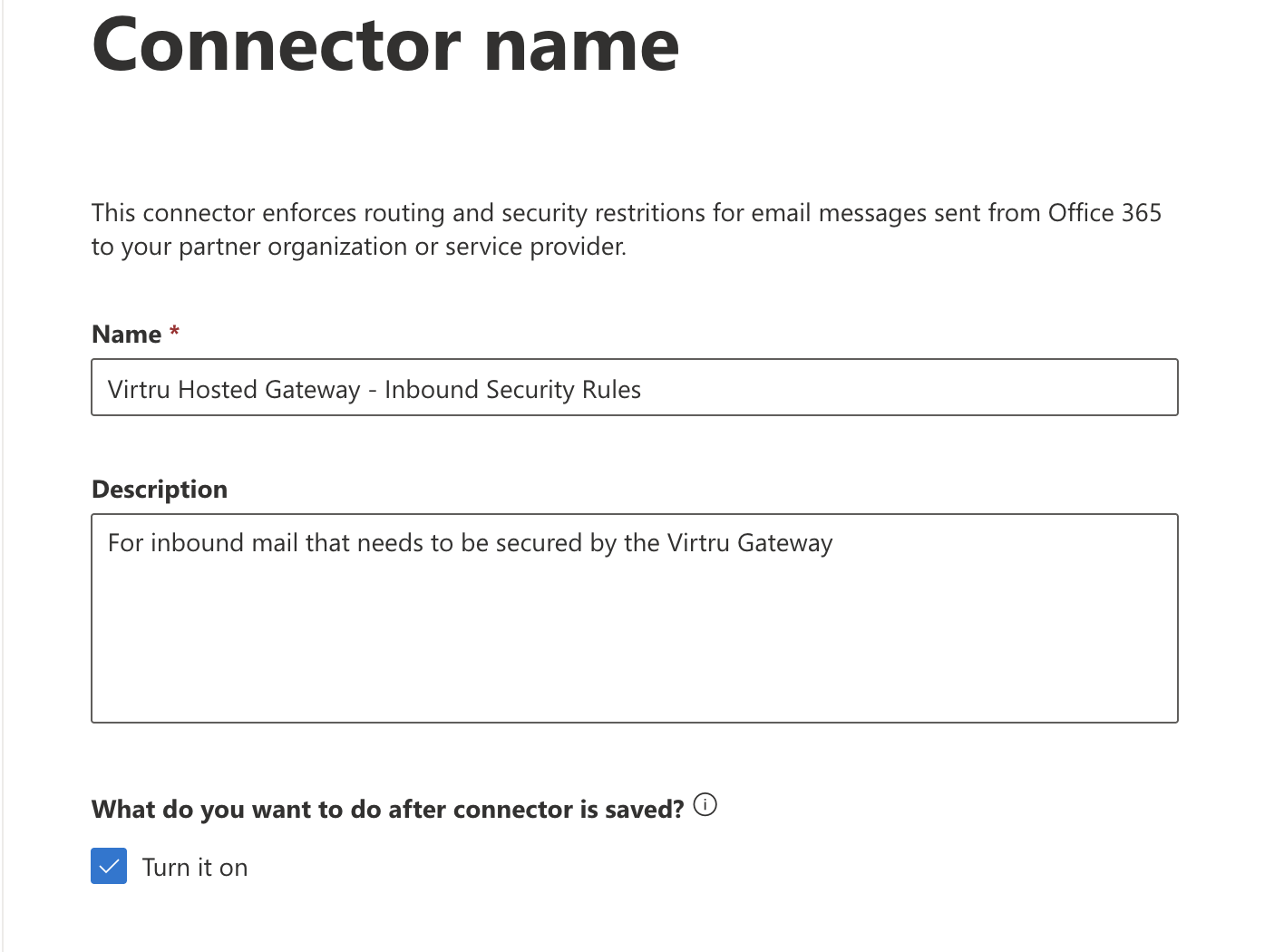

• Name the Connector
  • Ex: Virtru Hosted Gateway - Inbound Security Ruels
• Enter a description
  • Optional

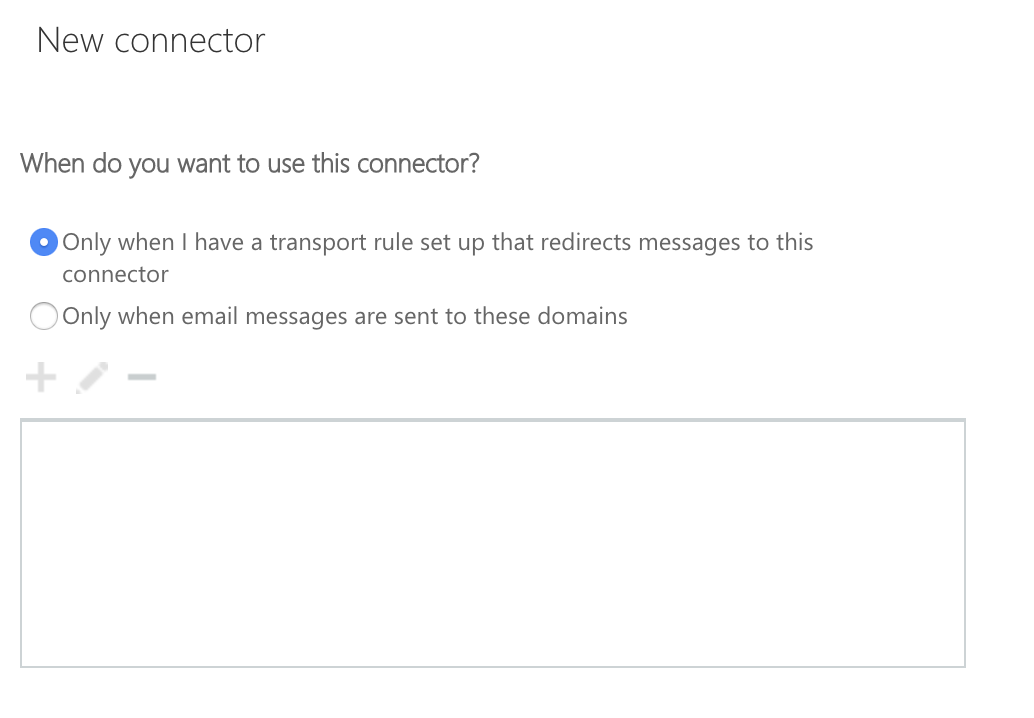

• When to use this connector
  • Only when I have a transport rule setup that redirects message to this connector

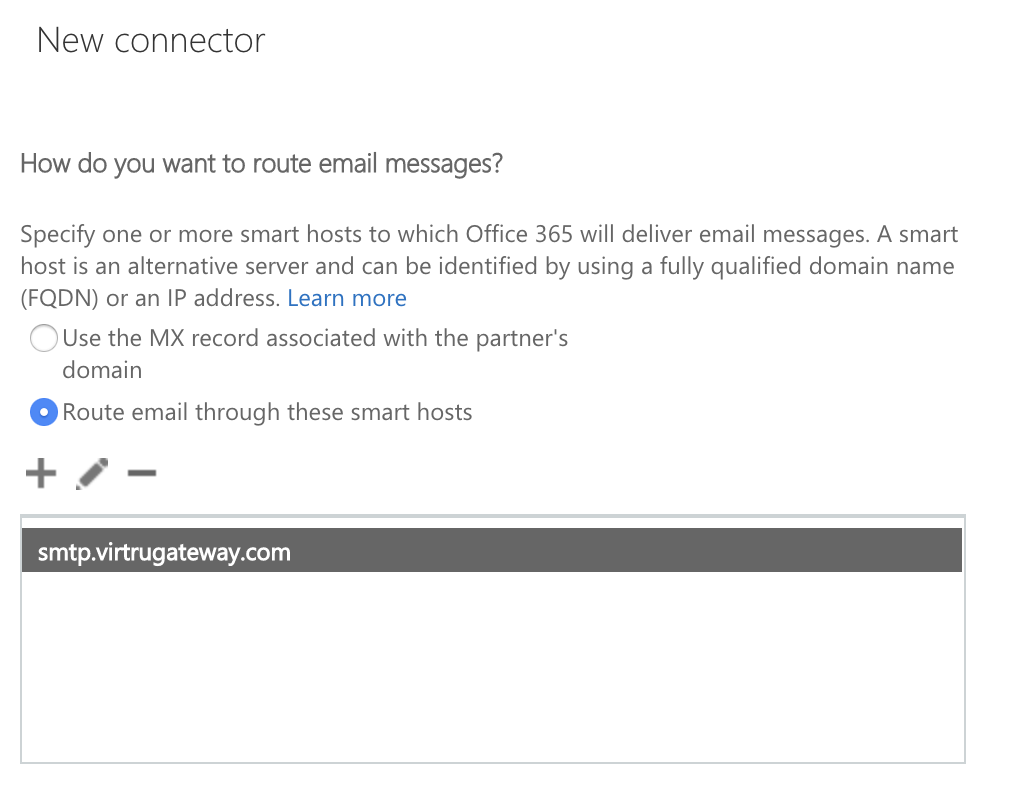

• How do you want to route email messages
  • Route email through these smart hosts
    • smtp.virtrugateway.com

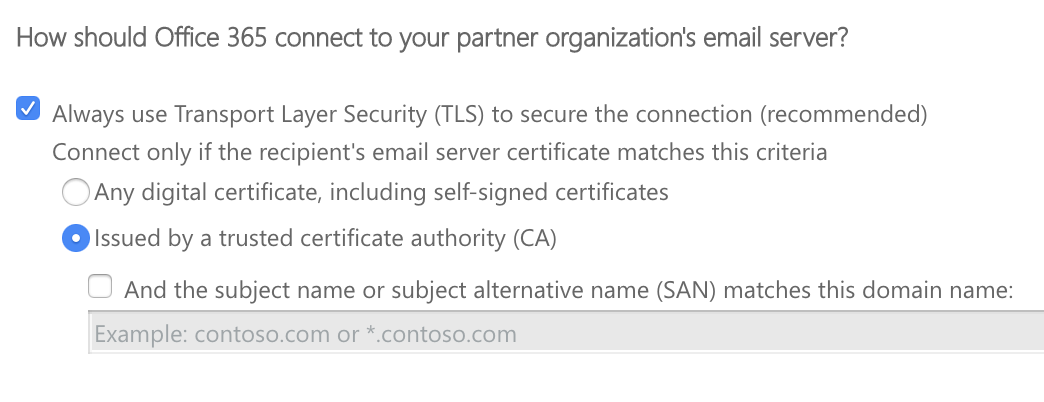

• How should Office 365 connect to your partner organization's email server
  • Always use TLS
  • Issued by a trusted certificate authority (CA)

• Validate Connector
  • Connector may need to be validated

Transport Rule

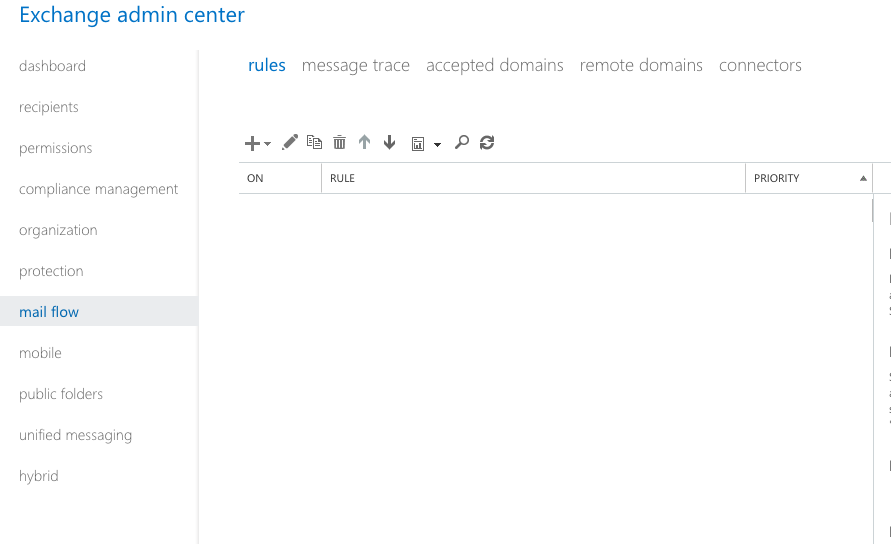

• Navigate to the Mail Flow Section
• Navigate to the Rules Tab

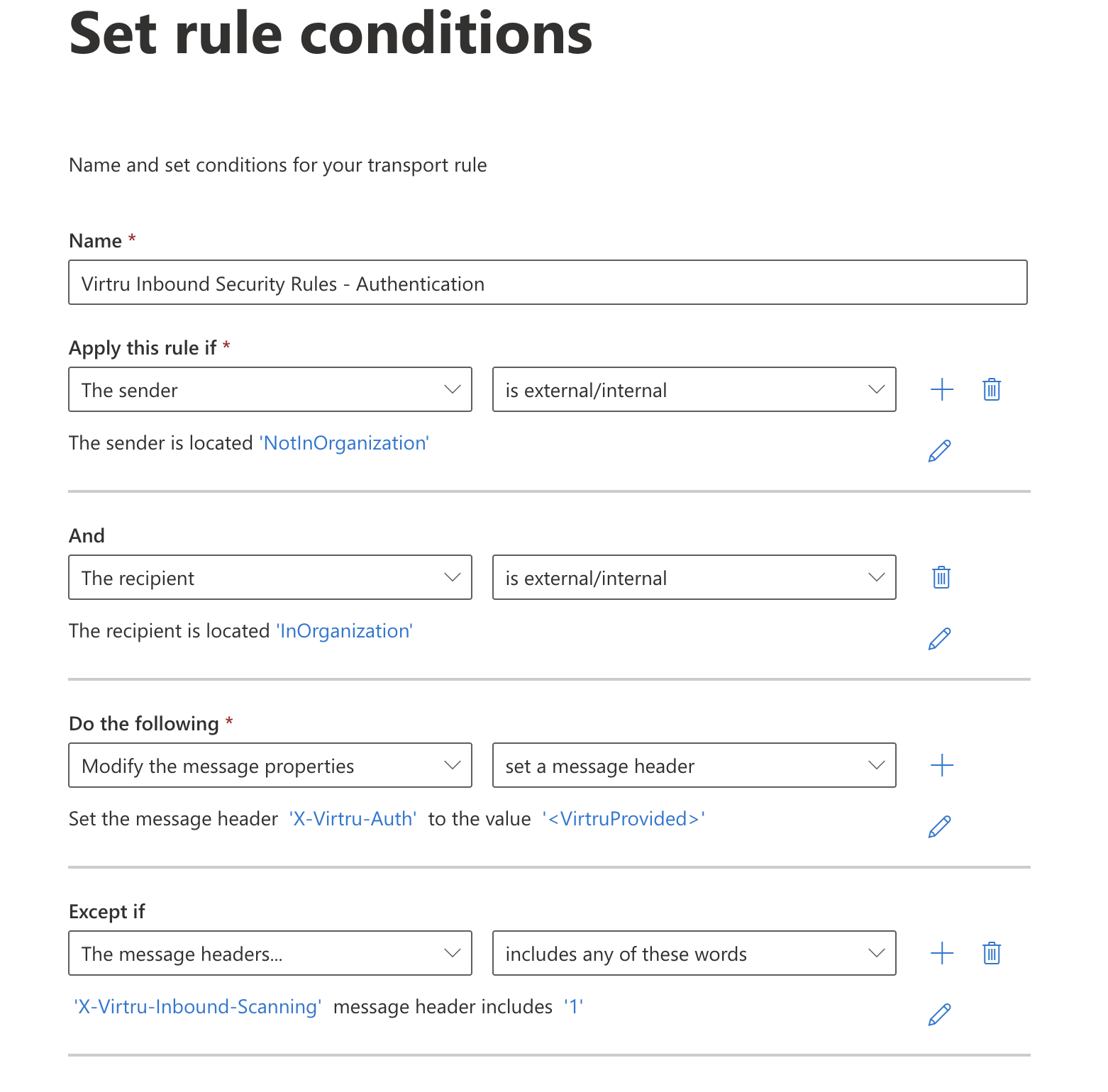

Add New Rule - Authentication

• Enter Rule Details
  • Name
    • Virtru Inbound Security Rules - Authentication
  • Conditions
    • The Sender is located: Outside the organization
    • The Recipient is located: Inside the organization
  • Actions

    • Add Header
      • Name: X-Virtru-Auth
      • Value:<Virtru Provided>
  • Exceptions
    • If Header Contains Text
      • Name: X-Virtru-Inbound-Scanning
      • Value: 1

Diagram

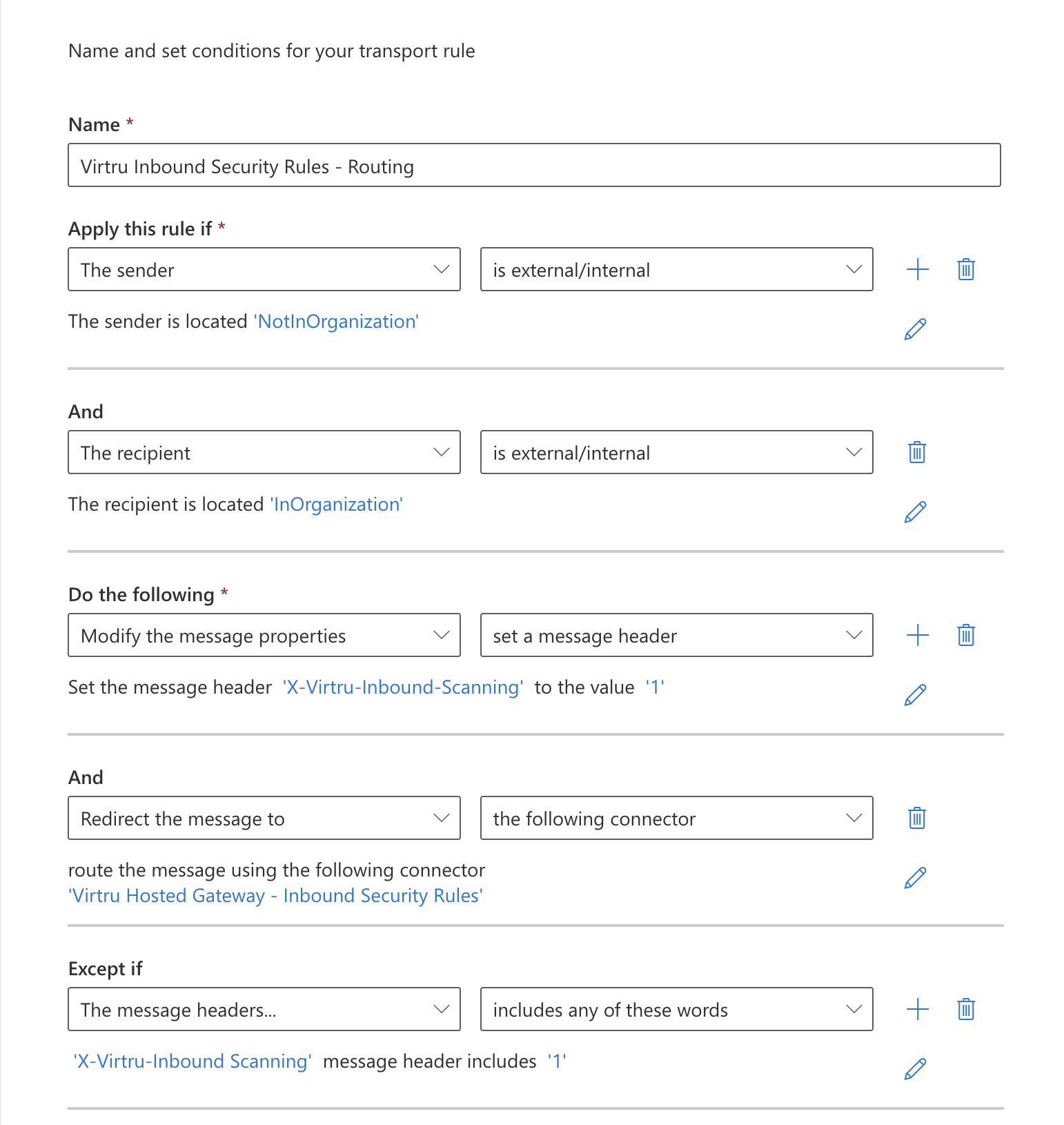

Add New Rule - Routing

• Enter Rule Details
  • Name
    • Virtru Inbound Decrypt - Routing
  • Conditions
    • The Sender is located: Outside the organization
    • The Recipient is located: Inside the organization
  • Actions

    • Modify Message Properties>Set a message header

      • Name: X-Virtru-Inbound-Scanning
      • Value: 1
    • Redirect Message to>The following connector

      • Virtru Hosted Gateway - Inbound Security Rules
  • Exceptions
    • The message header>includes any of these words

      • Name: X-Virtru-Inbound Scanning
      • Value: 1

Diagram

Click Save and Finish setup

Create Virtru Encryption Rule

Once the message is routed to the Virtru Hosted Gateway, a Virtru Security Rule must be created and enabled to evaluate the message and encrypt.  Each Virtru Security Rule is evaluated against each message sent to the Virtru Hosted Gateway.  The Virtru Security Rules are shared between the Virtru Hosted Gateway and the Virtru Clients.

To create a rule follow this LINK
