Active Directory Sync - Install

  • Updated

Jump to:

Summary

The install of the Active Directory Domain Sync Tool is performed similarly to any Windows application.

* Create Virtru users group

* Create Virtru admins group

* Run the Installer

* Modify the configuration

* Set the Schedule

* Start the service

Install Steps

  • Download the latest installer - Link to Installer
  • Run the MSI as a local administrator

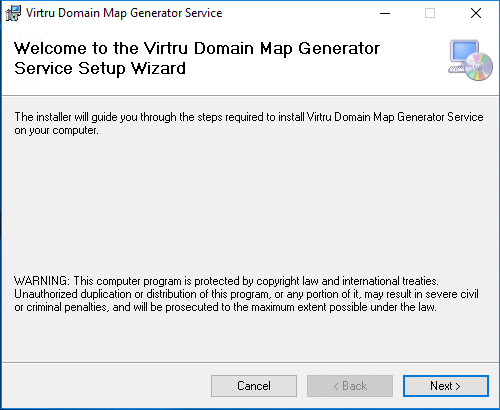

  • Run the Installer as an Administrator
  • Use defaults unless otherwise instructed.

Diagram installer

Modify Configuration

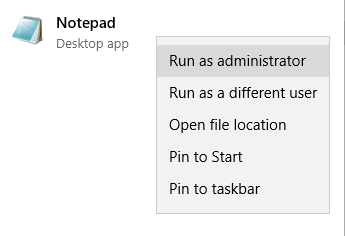

  • Run Notepad as an Administrator

Run Notepad

  • File
  • Open

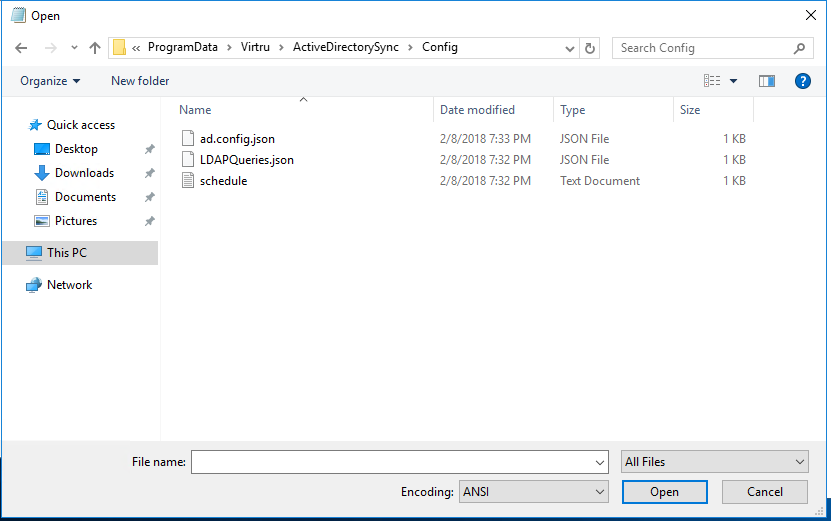

  • Navigate to: C:\ProgramData\Virtru\ActiveDirectorySync\Config

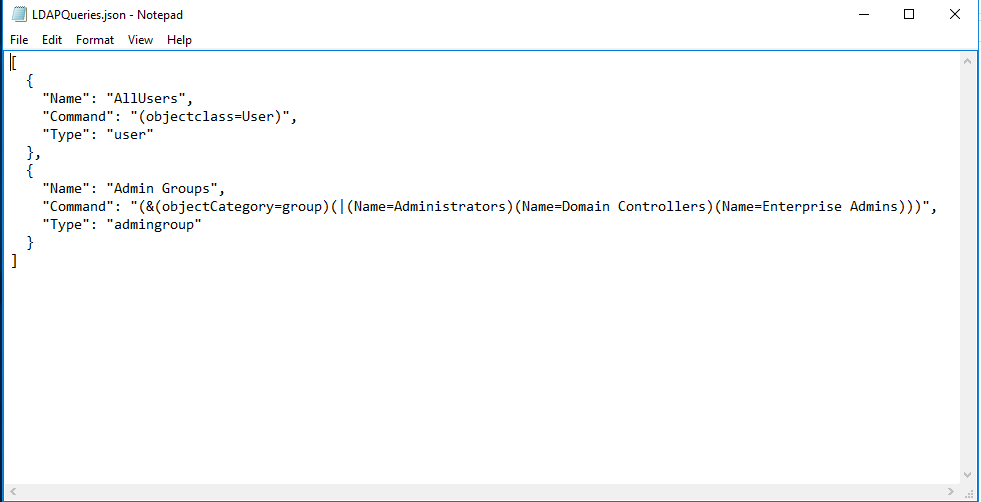

  • Open: LDAPQueries.json

Notepad

Notepad Files

LDAPQueries.json

JSON Files

  • Modify the Queries to match the required set of users.
  • Update LDAP query to include all users who will be a licensed Virtru User
  • Update LDAP query to include all licensed users who are also Virtru Admins

Items to Note

Its is important to verify this LDAP query using active directory users and computers first before saving them in the LDAP .json file.



Validate Keys

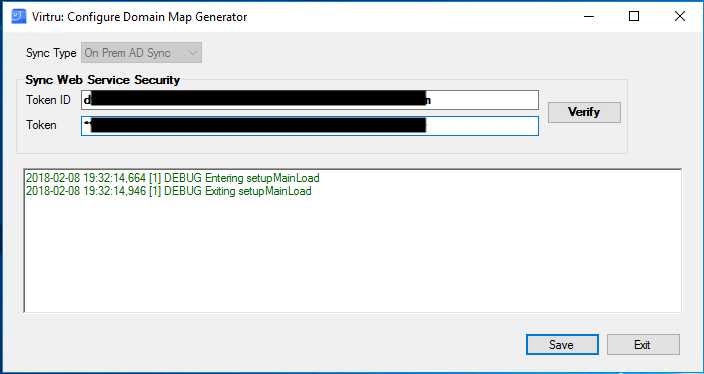

  • Enter Token ID (Provided by Virtru)
  • Enter Token Password (Provided by Virtru)

Configure Domain Map

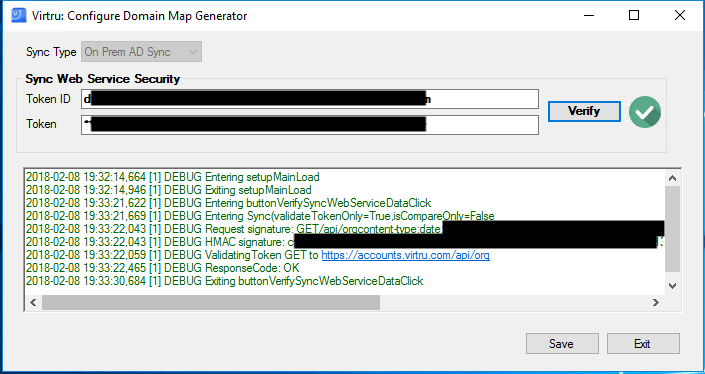

  • Click Verify

Verify Domain Map

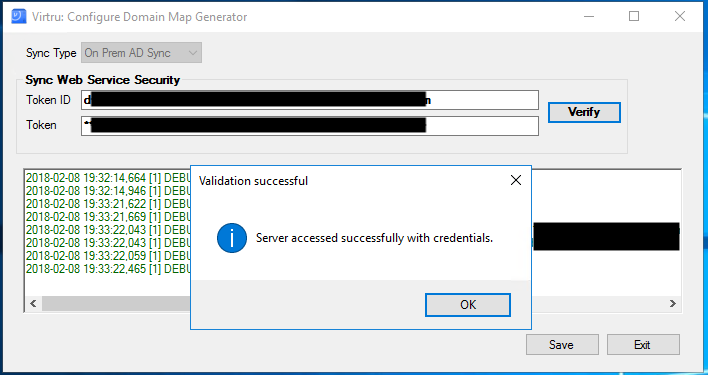

  • Once Credentials are verified click Save

Save Domain Map

  • Domain sync will kick off automatically once saved

Example LDAP Queries

Virtru Users

Virtru Users are all users who will use Virtru.

  • All Users in the Group "Virtru-Users1". This is the standard query that pulls all users and group associations within the Virtru Users group.
    • (&(objectclass=user)(memberOf=cn=Virtru-Users1,OU=L2,OU=L1,DC=domain,DC=local))
  • All Users in the Group "Virtru-Users1". Recursive (This query pulls groups placed within the Virtru-Users Group)
    • (&(objectclass=user)(memberOf:1.2.840.113556.1.4.1941:=cn=Virtru-Users1,OU=L2,OU=L1,DC=domain,DC=local))
  • All Users in the Group "Virtru Users 1" or "Virtru Users 2". Recursive (This query pulls all groups with the Virtru-Users naming format if there are multiple groups created for Virtru-Users)
    • (&(objectclass=user)(|(memberOf:1.2.840.113556.1.4.1941:=cn=Virtru-Users1,OU=L3,OU=L1,DC=domain,DC=local)(memberOf:1.2.840.113556.1.4.1941:=cn=Virtru-Users2,OU=L2,OU=L1,DC=domain,DC=local))

Virtru Admins

Virtru Admins is defined as a Virtru Admin and a Virtru User. Virtru Admins must be a part of the Virtru-Users group in order to be licensed to use Virtru.

  • All Virtru Users in the Group "Virtru-Admins1"
    • (&(objectCategory=group)(Name=Virtru-Admins1))
  • All Virtru Users in the Group "Virtru-Admins1" or "Virtru-Admins2"
    • (&(objectCategory=group)(|(Name=Virtru-Admins1)(Name=Virtru-Admins2)))



Items to Note

If the tool is installed on a Domain Controller (DC) a domain account must be set as the service account.



Attached

  • Default - LDAPQueries.json
  • Default - schedule.txt
